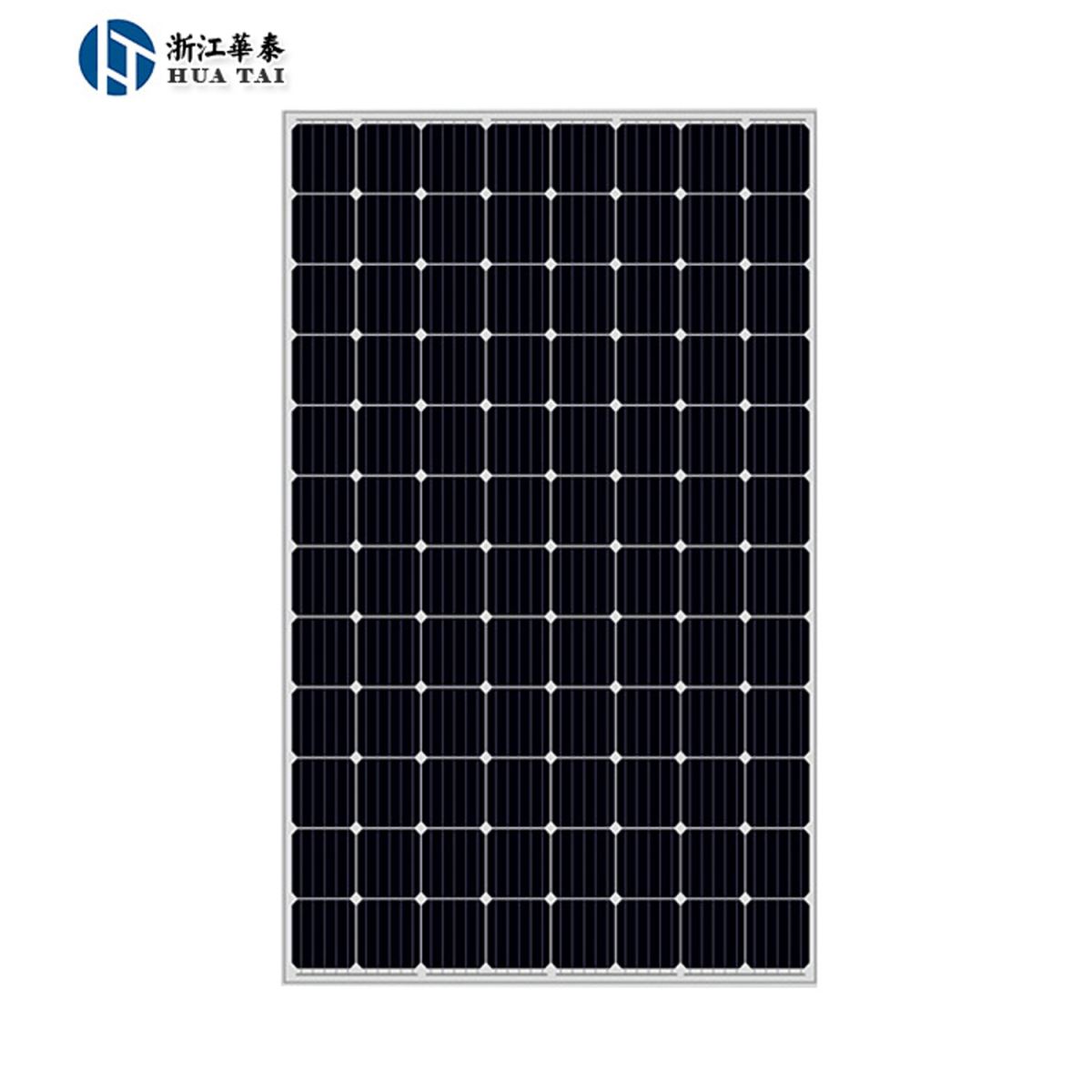

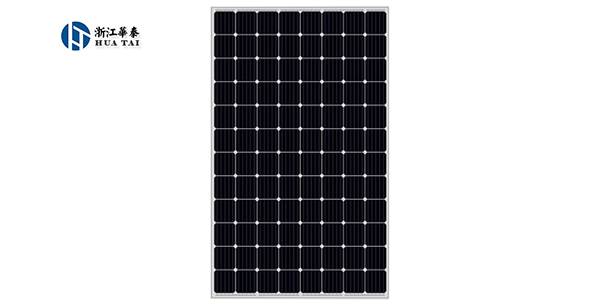

440W-500W Mono Solar Panel
Panel Features:
Standard 440W~500W 32V Solar Panel
48Vdc output for charging the 36V battery
Front tempered glass + TPT backsheet lamination, assembled with aluminum frame
High strength and snow/wind resistance
4~8 frame holes design for easily mounting on the poles or roof
Waterproof, Compressive Strength, and Scratch- Resistant
Upto 12 years warranty and 25 years lifespan
Panel power, color and logo customizable
OEM and ODM available
MECHANICAL CHARACTERISTICS
 |
Cell Type:
|
Mono-crystalline 157.75mm×157.75mm
|
|
Qty of Cells:
|
96PCS(8×12)
|
|
Dimension:
|
1956×1310×40mm
|
|
Module Weight
|
28kgs
|
|
Glass:
|
High transparency self -cleaning solar glass 3.2mm/4.0mm
|
|
Frame: |
Silver anodized aluminium alloy,thickness 35mm/40mm |
|
Junction Box: |
>IP65 |
|
Cable/Connector: |
4mm2, length 900/1000/ 1200mm,MC4 Compatible |
|
Packing: |
2PCS/CTN |
|
QTY per 20GP/40HQ: |
180pcs/480PCS |
ELECTRICAL CHARACTERISTICS
|
Model
|
HT96M-440 |
HT96M-450
|
HT96M-460
|
HT96M-470
|
HT96M-480
|
|
Rated Maximum Power(Pmax) [W]
|
440 |
450
|
460
|
470
|
480
|
|
Open Circuit Voltage(Voc) [V]
|
58.75 |
58.82
|
58.89
|
58.89
|
58.95
|
|
Maximum Power Voltage(Vmp) [V]
|
48.01 |
48.25
|
48.35
|
48.45
|
48.63
|
|
Short Circuit Current(Isc) [A]
|
9.78 |
9.9
|
10.04
|
10.67
|
10.87
|
|
Maximum Power Current(Imp) [A]
|
9.59 |
9.74
|
9.93
|
10.12
|
10.28
|
|
Module Efficiency [%]
|
17.95 |
18.34
|
18.73
|
19.12
|
19.51
|
|
Power Output Tolerances
|
±3% |
OPERATING CHARACTERISTICS
|
Maximum System Voltage[V]
|
1000/ 1500 DC(IEC)
|
Nominal operating cell temperature[℃] |
45+-2 |
|
Maximum Series Fuse Rating[A]
|
15
|
Temperature coefficients of Pmax[%/℃] |
-0.42 |
|
Operating Temperature[℃]
|
-40 to + 85
|
Temperature coefficients of Voc[%/℃] |
-0.31 |
|
Max load(snow/wind)[Pa]
|
5400/2400
|
Temperature coefficients of Isc[%/℃] |
+0.05 |
|
*STC:Irradiance 1000W/m²， module temperature 25℃, AM=1.5 WARRANTY:12-year product warranty;25-year linear power output warranty
|
|
