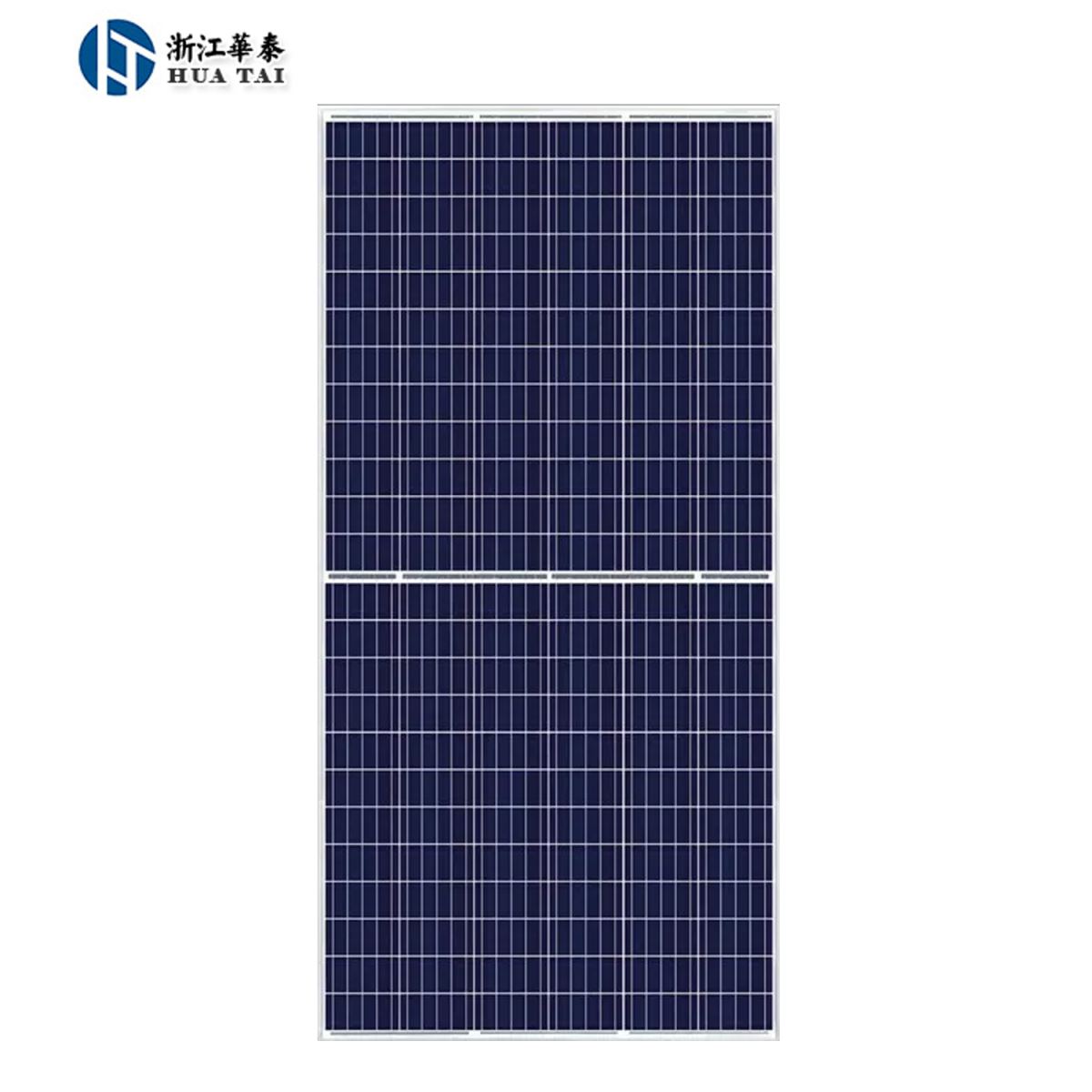

330W-350W Poly Solar Panel
Panel Features:
Standard 330W~350W 38V Solar Panel
38Vdc output for charging the 24V battery
Front tempered glass + TPT backsheet lamination, assembled with aluminum frame
High strength and snow/wind resistance
4~8 frame holes design for easily mounting on the poles or roof
Waterproof, Compressive Strength, and Scratch- Resistant
Upto 12 years warranty and 25 years lifespan
Panel power, color and logo customizable
OEM and ODM available
MECHANICAL CHARACTERISTICS
 |
Cell Type:
|
Poly-crystalline 78.875mm×157.75mm
|
|
Qty of Cells:
|
144PCS(6×24)
|
|
Dimension:
|
2015×996×40mm
|
|
Module Weight
|
23kgs
|
|
Glass:
|
High transparency self -cleaning solar glass 3.2mm/4.0mm
|
|
Frame: |
Silver anodized aluminium alloy,thickness 40mm |
|
Junction Box: |
>IP65 |
|
Cable/Connector: |
4mm2, length 900/1000/ 1200mm,MC4 Compatible |
|
Packing: |
27PCS/Pallet |
|
QTY per 20GP/40HQ: |
300pcs/780PCS |
ELECTRICAL CHARACTERISTICS
|
Model
|
HT144P-330 |
HT144P-335
|
HT144P-340
|
HT144P-345
|
HT144P-350
|
|
Rated Maximum Power(Pmax) [W]
|
330 |
335
|
340
|
345
|
350
|
|
Open Circuit Voltage(Voc) [V]
|
45.54 |
45.73
|
45.89
|
46.07
|
46.27
|
|
Maximum Power Voltage(Vmp) [V]
|
37.72 |
37.9
|
38.08
|
38.25
|
38.43
|
|
Short Circuit Current(Isc) [A]
|
9.26 |
9.35
|
9.43
|
9.5
|
9.58
|
|
Maximum Power Current(Imp) [A]
|
8.75 |
8.84
|
8.93
|
9.02
|
9.11
|
|
Module Efficiency [%]
|
16.4 |
16.7
|
16.9
|
17.2
|
17.4
|
|
Power Output Tolerances
|
±3% |
OPERATING CHARACTERISTICS
|
Maximum System Voltage[V]
|
1000/ 1500 DC(IEC)
|
Nominal operating cell temperature[℃] |
45+-2 |
|
Maximum Series Fuse Rating[A]
|
15
|
Temperature coefficients of Pmax[%/℃] |
-0.42 |
|
Operating Temperature[℃]
|
-40 to + 85
|
Temperature coefficients of Voc[%/℃] |
-0.31 |
|
Max load(snow/wind)[Pa]
|
5400/2400
|
Temperature coefficients of Isc[%/℃] |
+0.05 |
|
*STC:Irradiance 1000W/m²， module temperature 25℃, AM=1.5 WARRANTY:12-year product warranty;25-year linear power output warranty
|
|
