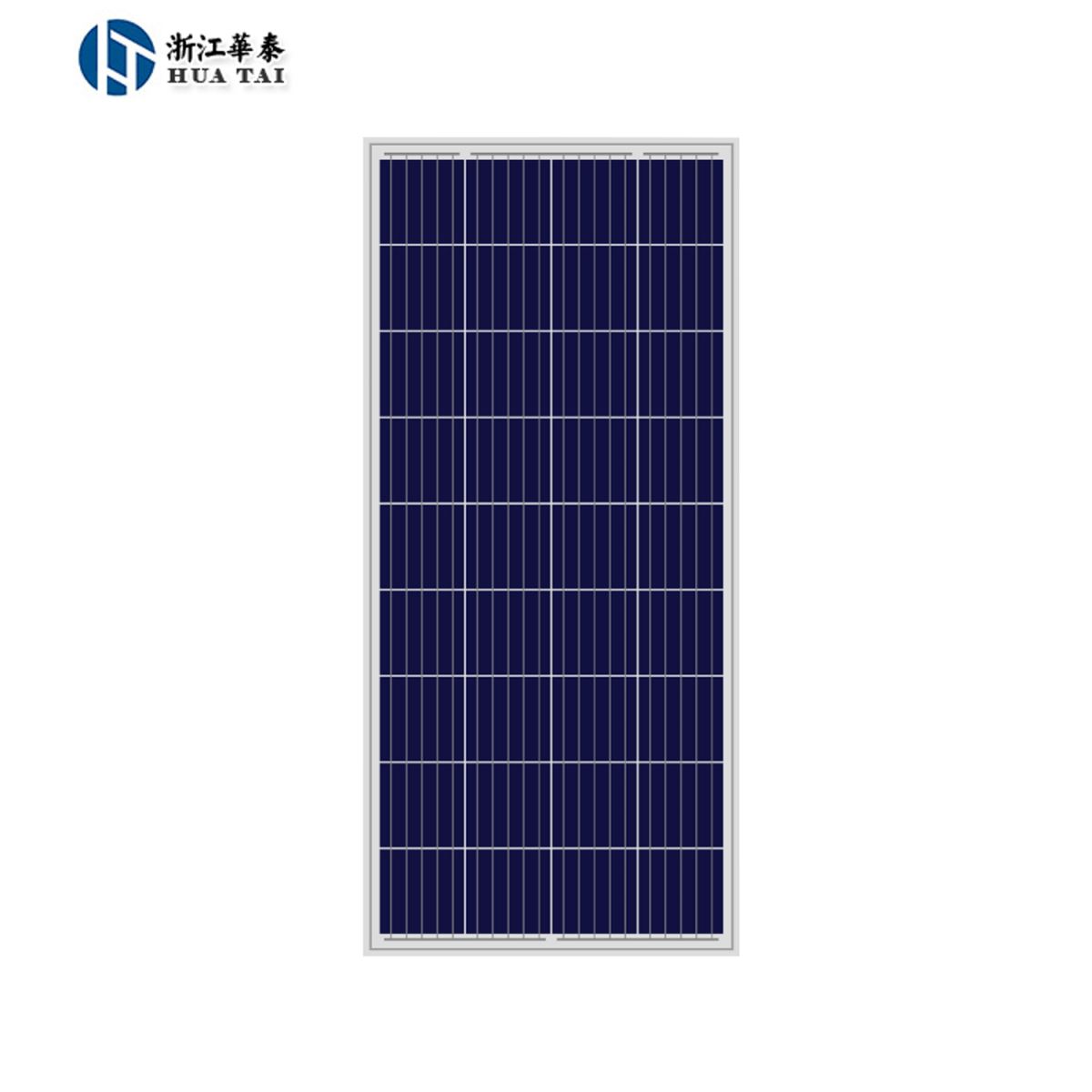

150W-170W Poly Solar Panel
Panel Features:
Standard 150W~170W 18V Solar Panel
18Vdc output for charging the 12V or 6V battery
Front tempered glass + TPT backsheet lamination, assembled with aluminum frame
High strength and snow/wind resistance
4~8 frame holes design for easily mounting on the poles or roof
Waterproof, Compressive Strength, and Scratch- Resistant
Upto 12 years warranty and 25 years lifespan
Panel power, color and logo customizable
OEM and ODM available
MECHANICAL CHARACTERISTICS
 |
Cell Type:
|
Poly-crystalline 157.75mm×157.75mm
|
|
Qty of Cells:
|
36PCS(4×9)
|
|
Dimension:
|
1480×680×35mm/40mm
|
|
Module Weight
|
12kgs
|
|
Glass:
|
High transparency self -cleaning solar glass 3.2mm/4.0mm
|
|
Frame: |
Silver anodized aluminium alloy,thickness 35mm/40mm |
|
Junction Box: |
>IP65 |
|
Cable/Connector: |
4mm2, length 900/1000/1200mm,MC4 Compatible |
|
Packing: |
2PCS/CTN |
|
QTY per 20GP/40HQ: |
660pcs/1620PCS |
ELECTRICAL CHARACTERISTICS
|
Model
|
HT36P-150W |
HT36P-155W
|
HT36P-160W
|
HT36P-165W
|
HT36P-170W
|
|
Rated Maximum Power(Pmax) [W]
|
150 |
155
|
160
|
165
|
170
|
|
Open Circuit Voltage(Voc) [V]
|
22.55 |
22.78
|
23.06
|
23.46
|
23.46
|
|
Maximum Power Voltage(Vmp) [V]
|
18.31 |
18.45
|
18.65
|
18.77
|
19.1
|
|
Short Circuit Current(Isc) [A]
|
8.34 |
8.71
|
9.09
|
9.21
|
9.27
|
|
Maximum Power Current(Imp) [A]
|
8.19 |
8.4
|
8.58
|
8.79
|
8.9
|
|
Module Efficiency [%]
|
15.1 |
15.6
|
16.1
|
16.6
|
17.1
|
|
Power Output Tolerances
|
±3%
|
OPERATING CHARACTERISTICS
|
Maximum System Voltage[V]
|
1000/ 1500 DC(IEC)
|
Nominal operating cell temperature[℃] |
45+-2 |
|
Maximum Series Fuse Rating[A]
|
15
|
Temperature coefficients of Pmax[%/℃] |
-0.42 |
|
Operating Temperature[℃]
|
-40 to + 85
|
Temperature coefficients of Voc[%/℃] |
-0.31 |
|
Max load(snow/wind)[Pa]
|
5400/2400
|
Temperature coefficients of Isc[%/℃] |
+0.05 |
|
*STC:Irradiance 1000W/m²， module temperature 25℃, AM=1.5 WARRANTY:12-year product warranty;25-year linear power output warranty
|
|
